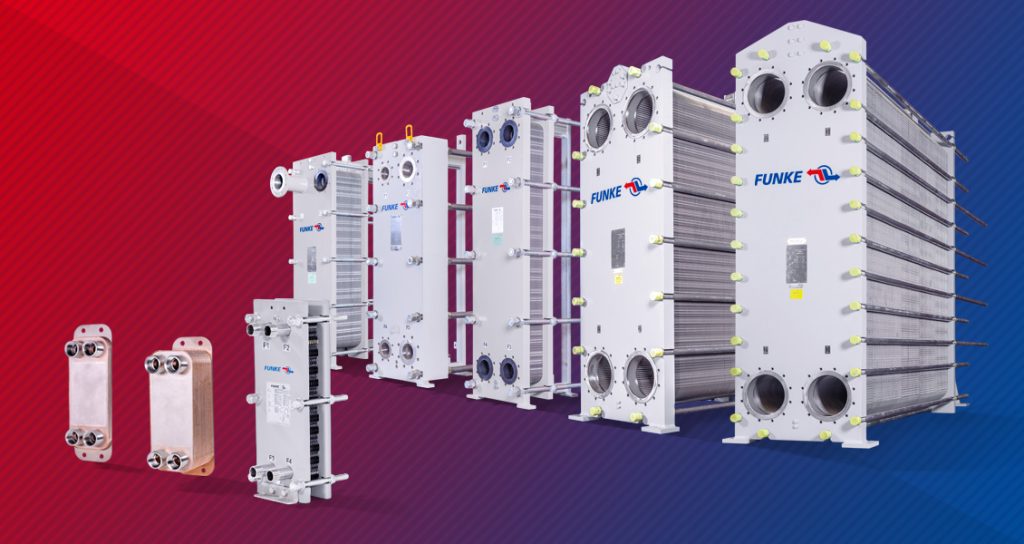

In the area of plate heat exchangers, FUNKE offers a sophisticated range of products for almost any requirement in mechanical and plant engineering. FUNKE’s unique “Off-Set” system with asymmetrical flow gaps creates highly efficient and cost-effective devices, whose performance per area (depending on the design) is up to 17% higher than conventional plate heat exchangers.

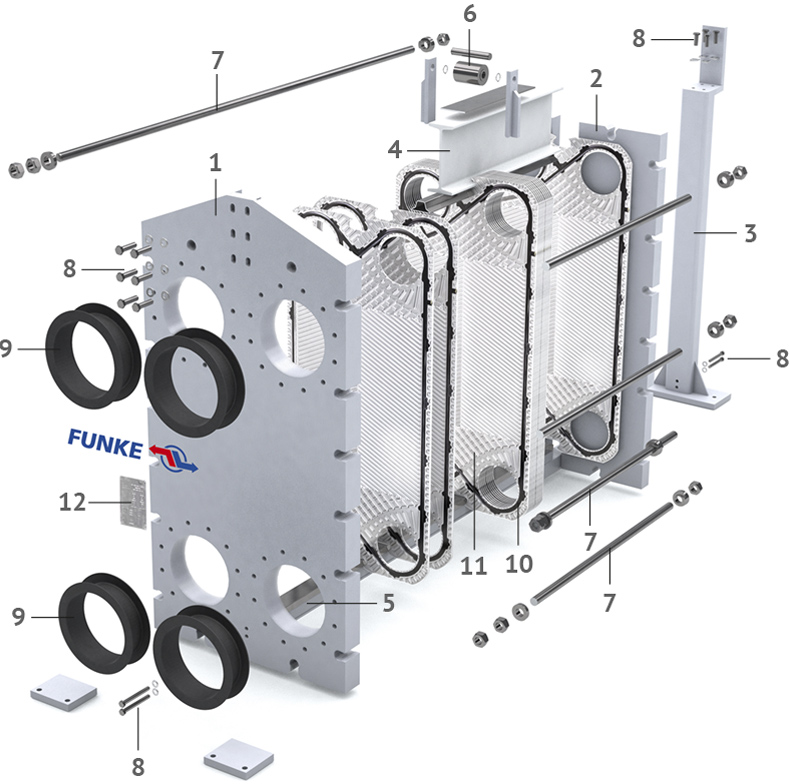

DESIGN OF A PLATE HEAT EXCHANGER
- Fixed plate
- Movable plate
- Support column
- Carrying bar
- Lower plate guiding bar
- Carrier roller
- Tightening bolt and nuts
- Fixing bolts
- Rubber/metal liners
- Gaskets
- Heat transfer plates
- Name plate
